ACTOM Power Transformers supports the mining industry with operational use of transformers, supply of transformers for utility self-built projects and with renewable energy installations. Transformers can be tailored to the site requirements.
Operational application
Utilities self-build
Renewable energy requirements
Customisations
Projects
Bakubung Platinum Mine Concentrator
40MVA 33/11kV
Transformer specs

Dyn11 ONAF OLTC
Transformer types

x2
Quantity
Driving ancillaries at the mine
High current on the high voltage side having onload tap changer with significant current rating

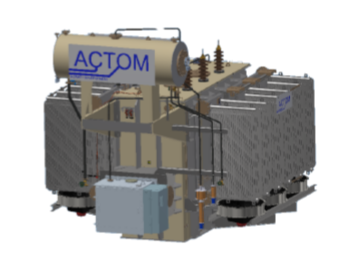

Bakubung Platinum Mine Concentrator Transformer
Subika Underground Infrastructure (Newmont Ghana Gold Limited)
30/40MVA 160/34.5kV
Transformer specs

YNd11 ONAF OLTC
Transformer types

x1
Quantity
Mine's main substation transformer
Export into Africa. Voltage operating conditions can withstand, without any danger, an exceptional overexcitation causing the flux to increase up to 1.4 times the normal flux for a duration of up to 10 seconds. The transformer shall be capable of operating continuously at no load and on any tap with the HV equal to 178kV.
15MVA 34.5/11kV
Transformer specs

Dyn11 ONAN OCTS
Transformer types

x5
Quantity
Supplying the ancillary mining operations
DRA Global exported the transformers to site, did the engineering on the expansion, and handled the exports of the transformers. ACTOM supervised the installation and cold commissioned the transformers.

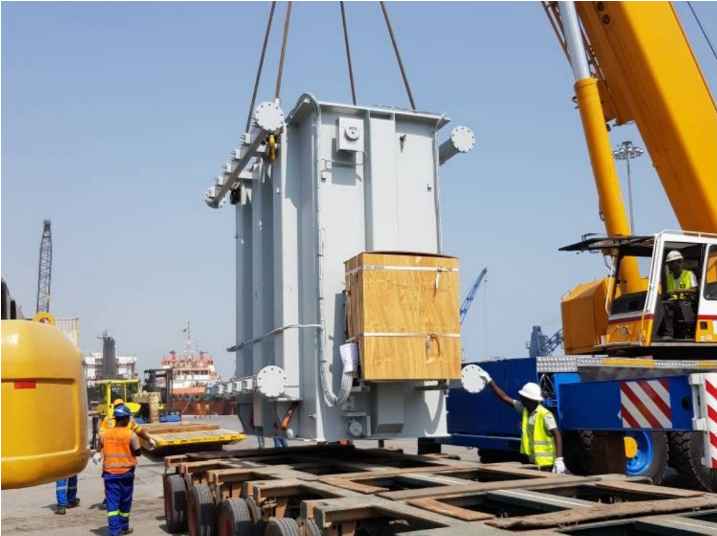

Subika Underground Infrastructure Transformer 1 held by the workers

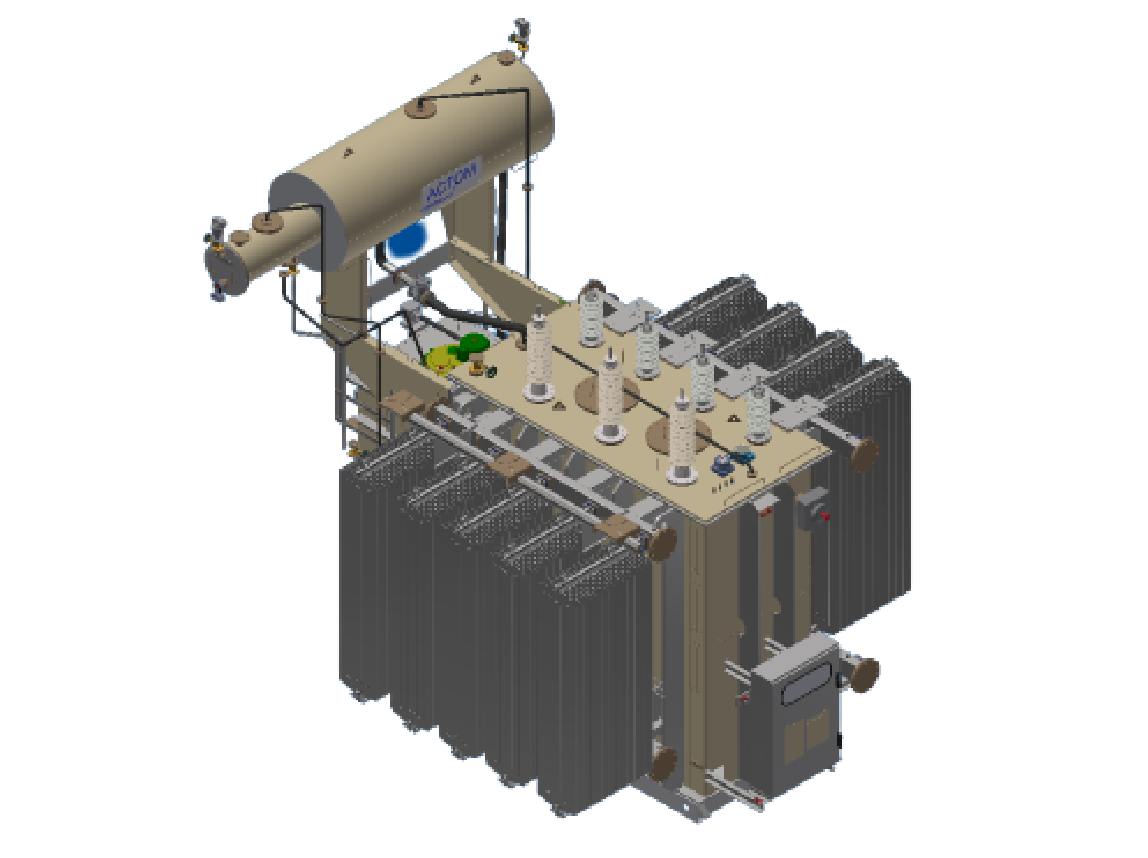

Subika Underground Infrastructure Transformer Vector
Natural Ester Black Mountain mining for Aggeneys Township upgrade
12.5MVA 66/6.6kV
Transformer specs

Dyn11 KNAN OLTC
Transformer types

x1
Quantity
Natural Ester oil filled transformer
The oil used is biodegradable, environmentally friendly and has good thermal and fire-protective properties.
Natural Ester Black Mountain Transformer vector
