Data Centres

PORTFOLIO AND INSIGHTS
ACTOM Power Transformers offers custom-made transformers to data centres to suit their constraints. The transformers are designed using natural ester fluid to enhance the optimisation of space.
Space constraints
Customised design
Projects
Teraco Kempton Park Data Centre Substation
40MVA 88/11kV
Transformer specs

YNd1 ONAF OLTC
Transformer types

x3
Quantity
Customer was ACTOM Power Systems (EPC) for Teraco
Designed for a lifespan of 40 years according to IEC 60076 specifications and specifically part 7 for overloading capability. Used world-class auxiliary items, such as modern design bushings and vacuum technology tap changers, to enhance reliability.

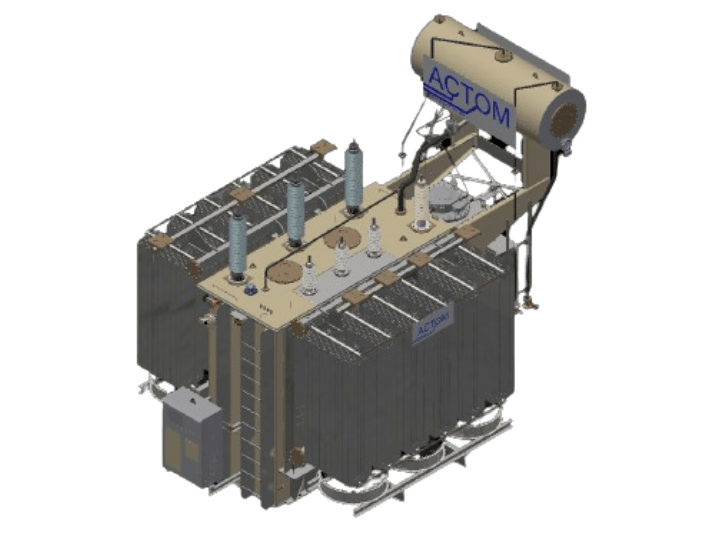

Teraco Kempton Park Data Centre Transformers
Teraco Brackenfell Data Centre Phase 2
60MVA 132/11kV
Transformer specs

YNd1 KNAF OLTC
Transformer types

x2
Quantity

Space restriction on the substation expansion resulted in the transformers being manufactured with natural ester fluid because of its fire-protection capability. The cooling fluid's fire-protection capability circumvents the requirement for firewalls. The low voltage interface was built with a cable box rather than traditional open bushings to accommodate the spatial constraints. Online condition monitoring equipment was fitted to the transformer to enable the owner to monitor its health.

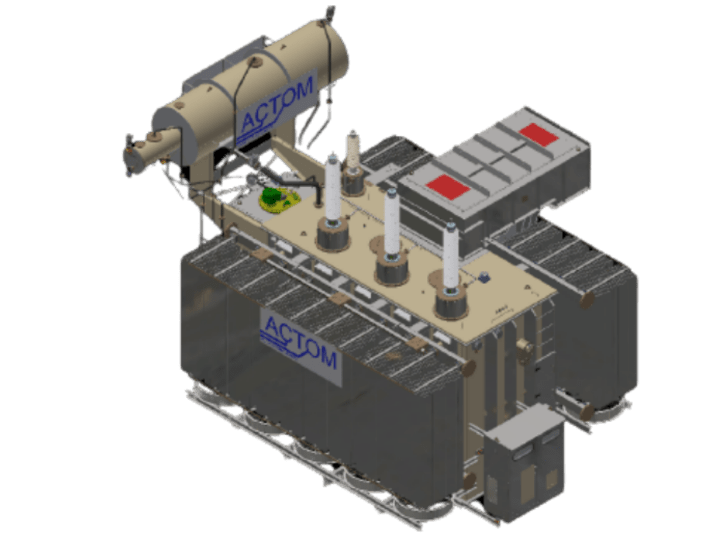

Teraco Brackenfell Data Centre Transformer
